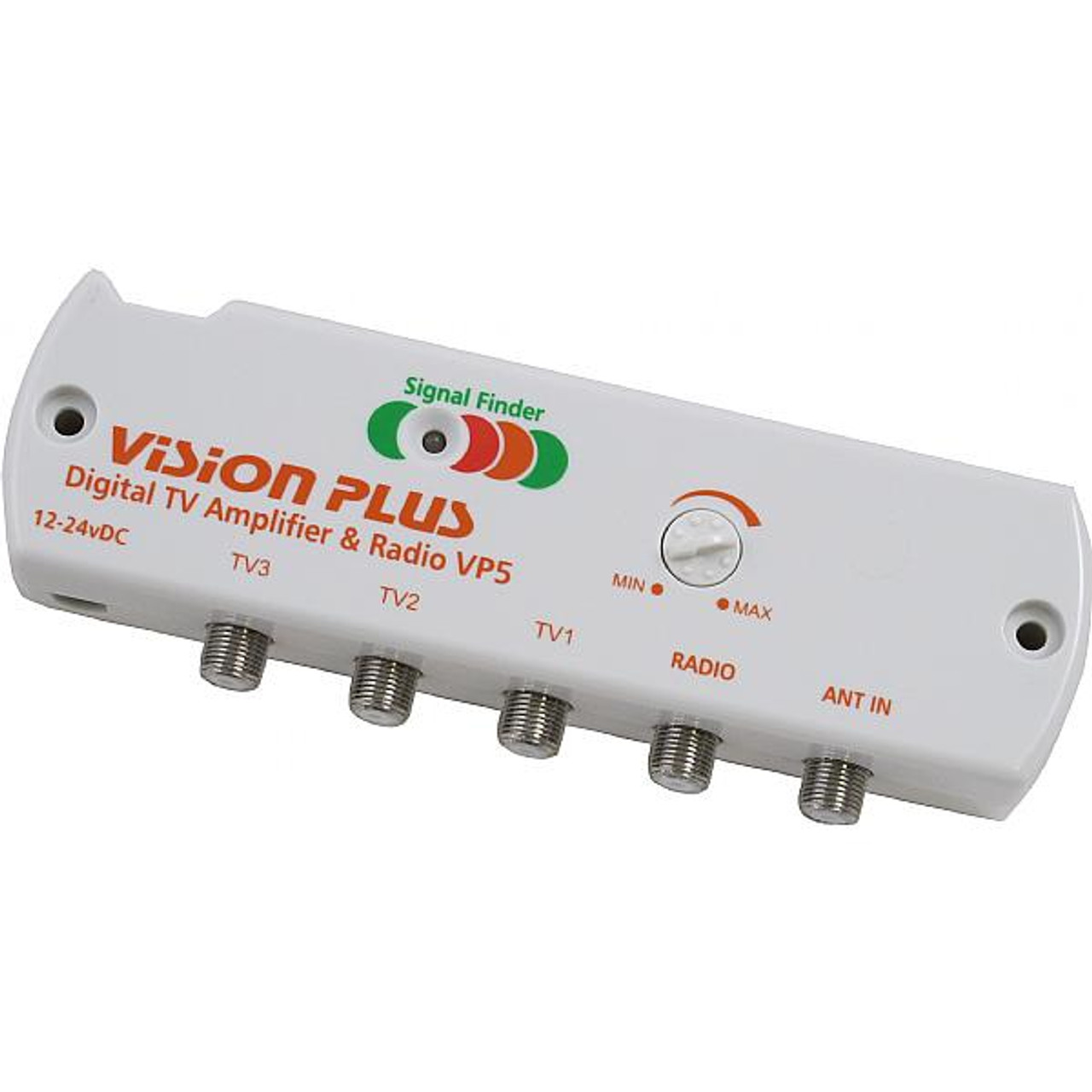

Vision Plus VP 5 Digital TV Amplifier with Signal Finder

Designed to enhance the performance of all non-amplified directional TV antennas, the Vision Plus VP 5 Digital TV Amplifier with Signal Finder also has capabilities for radio with a non-amplified outlet for FM radio reception (when used in conjunction with a UHF/FM antenna).

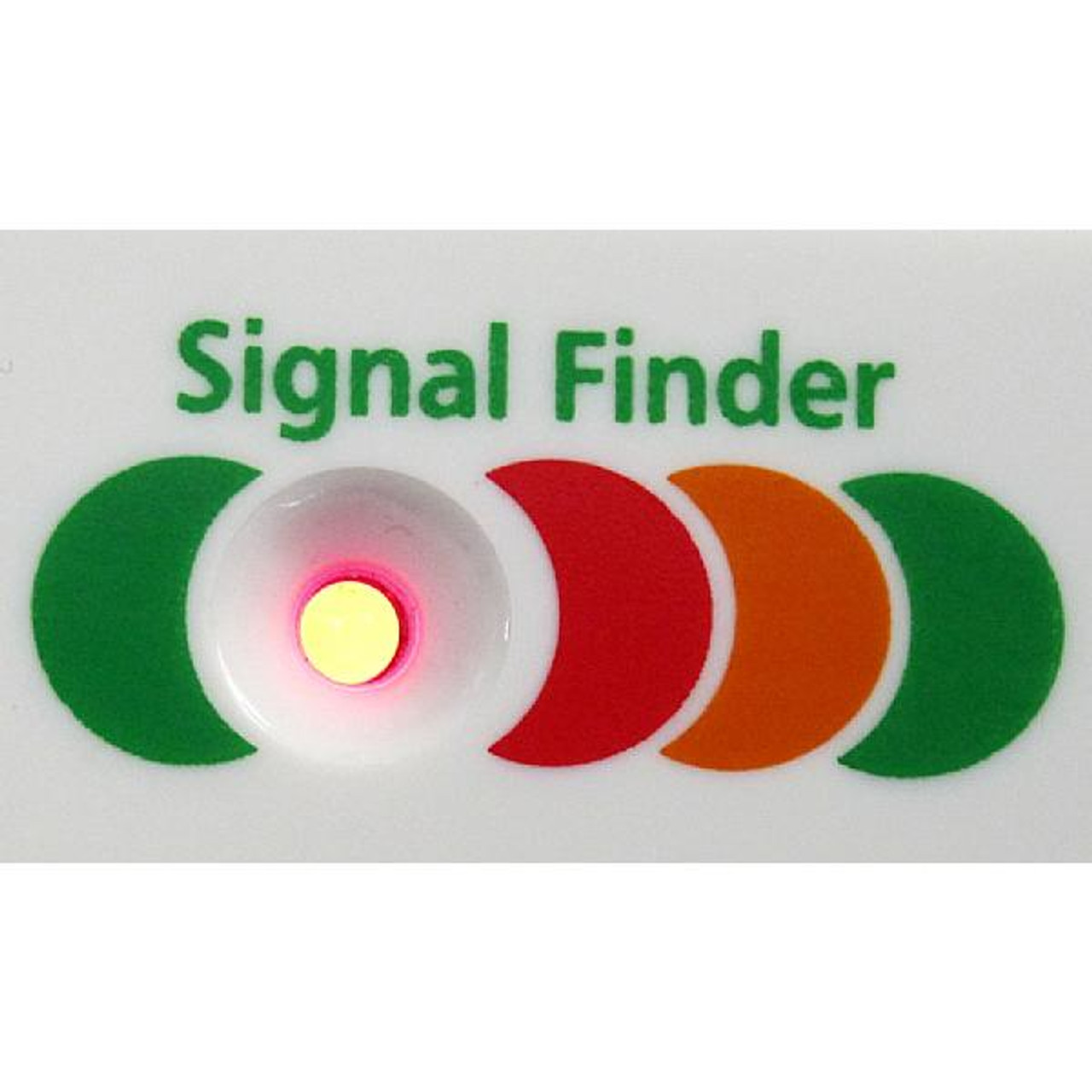

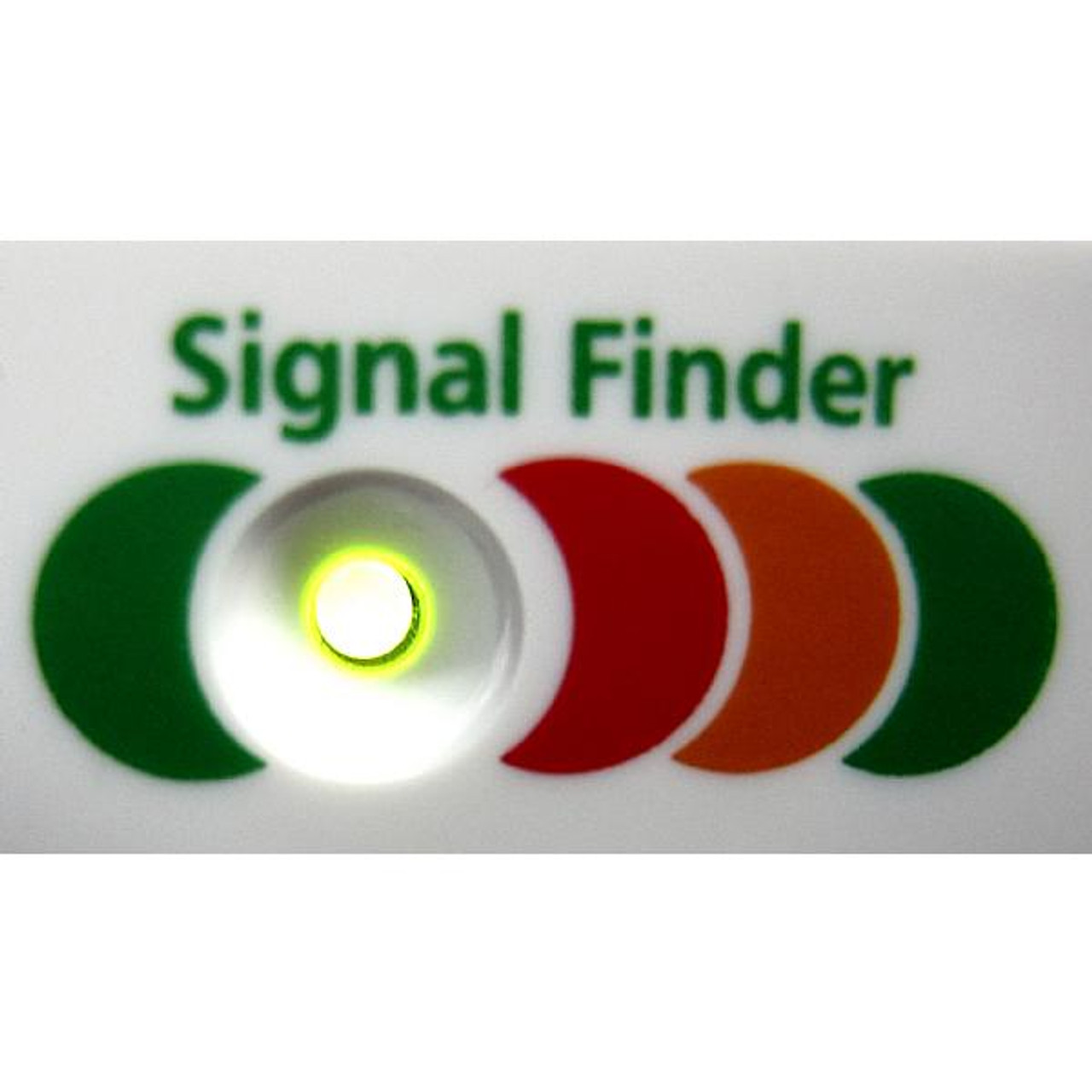

A unique product which also incorporates a dedicated signal finder enabling you to find the strongest digital TV signal available, the Vision Plus VP 5 Digital TV Amplifier with Signal Finder is a powerful amplifier capable of high performance even in areas prone to poor reception.

Vision Plus VP 5 Digital TV Amplifier with Signal Finder Specifications

• On/Off switch
• Variable gain control
• 3 TV outputs
• 1 FM Radio output
• Frequency Range UHF 470-860 Mhz
• Frequency Range VHF 40-230 Mhz
• Frequency Range FM 88-108 Mhz
• Amplifier Gain Max 16db
• Gain Adjustment 15db
• Flatness +1.5db
• Noise Figure 2db
• Output Impedance 75ohms
• Signal Handling 80dbuv
• Power Supply 10.8-28v DC
• Power Consumption 55ma
• Dimensions 157wx46hx28d (mm)
