Victron Energy Color Control GX

The Communication Centre of your Victron Energy Installation

Overview

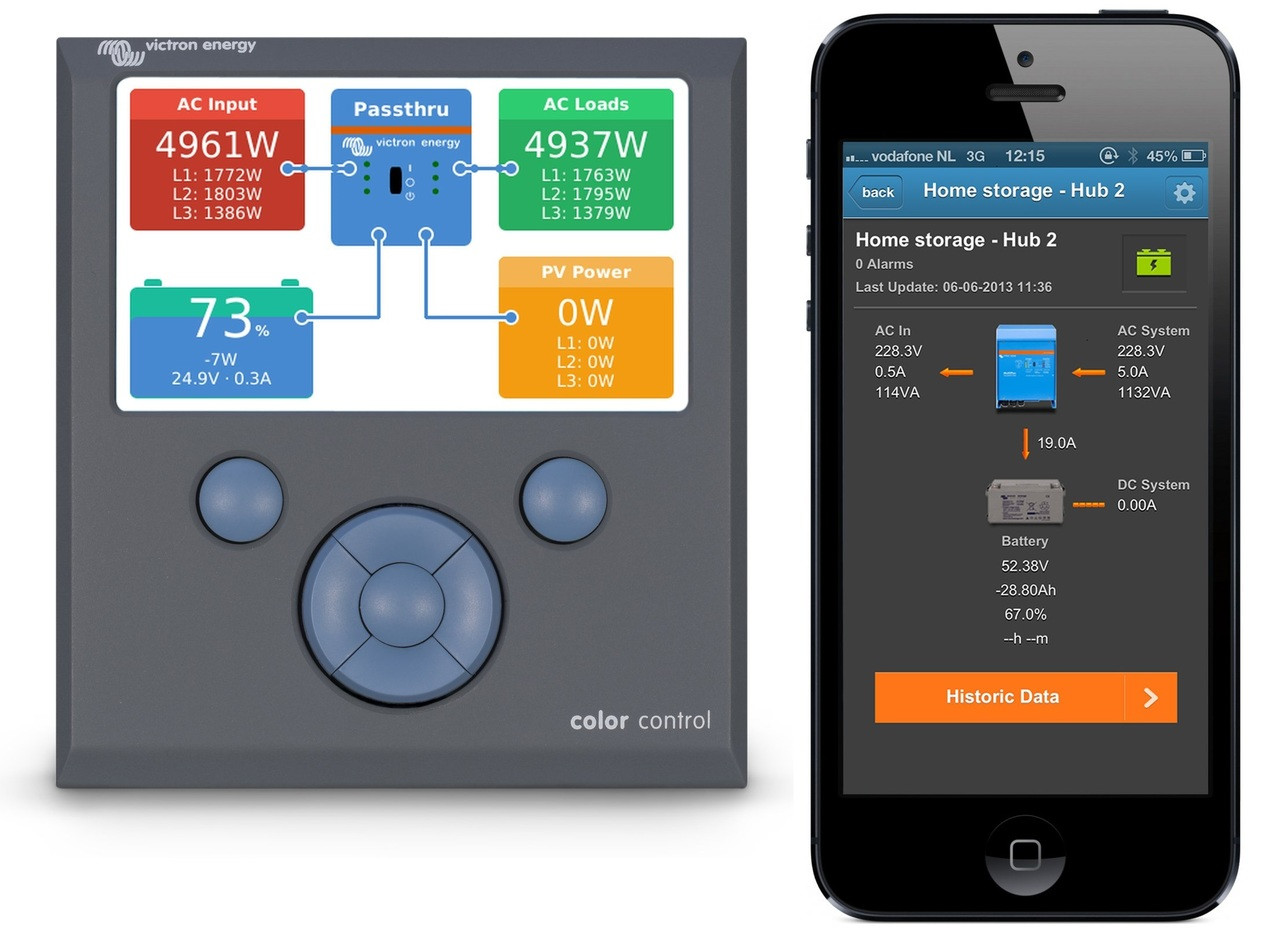

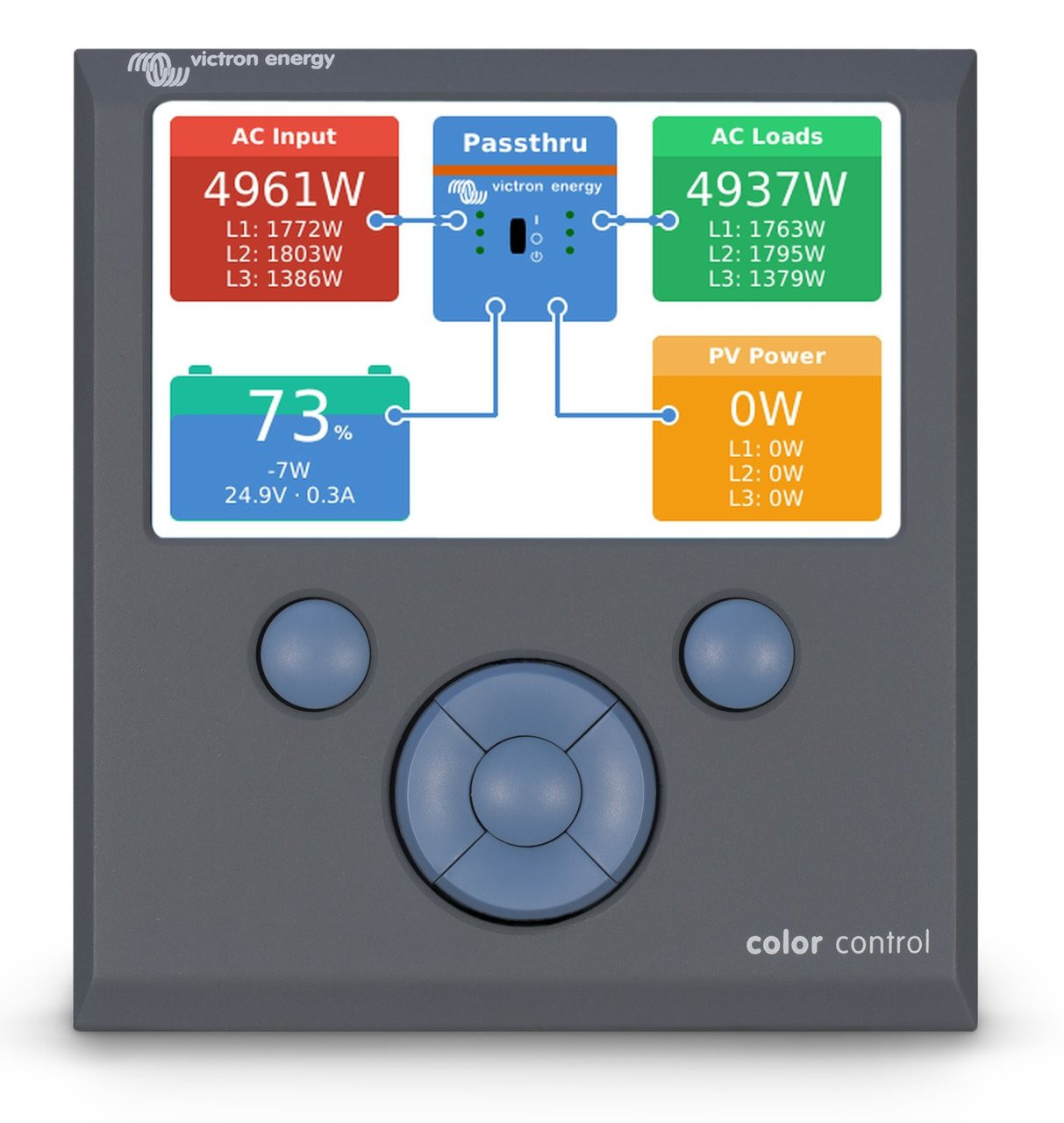

With a single touch the Victron Energy Color Control GX provides an instant overview of your system including battery state of charge, present power consumption, power harvest from PV and power provision from mains/generator. Offering you live information of all devices connected to it the Color Control GX allows you to have full system control around the globe.

Victron Remote Product Management

Also known as VRM – Victron Remote Management is a system that gives you full access to all controls and settings of the full sytem and their components which are connected to your CCGX allowing you to login remotely from anywhere at anytime providing you with diagnostics and analysis of your products.

24 Hour Energy Storage and Monitoring

Keeping your back-up batteries charged to 100% and using them during power cuts the Color Control GX Energy Storage System diverts and converts any excess solar power to its self-consumption system, thus saving you money.

Technical Specifications:

Power Supply Voltage Range:

9-70V DC

Current Draw:

12v DC

Display Off:

140mA

Display at Minimum Intensity:

160mA

Display at Maximum Intensity:

245mA

Potential Free Contact:

3A /30V DC / 250V AC (Normally Open)

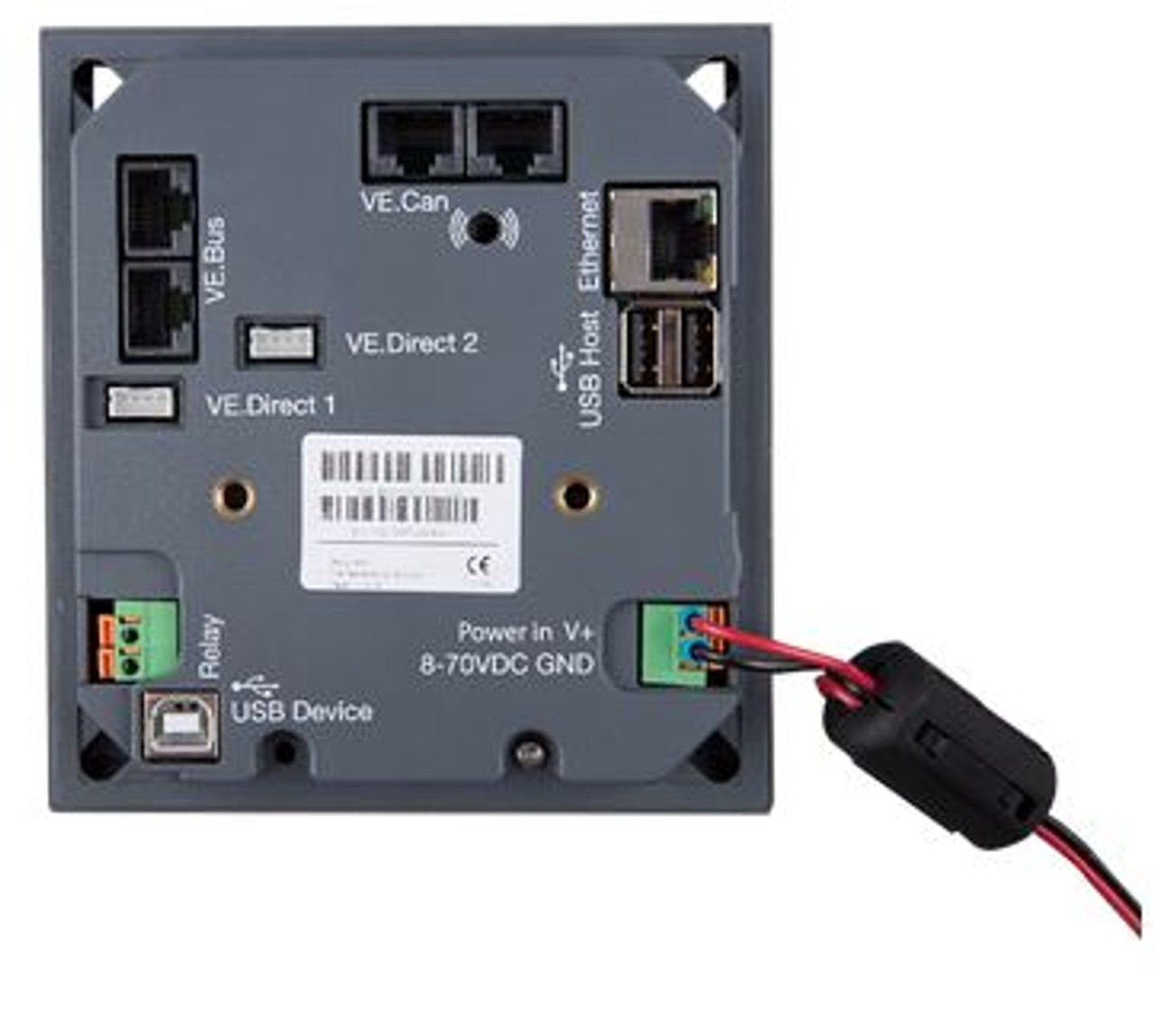

VE.Direct Ports:

2 Isolated

USB Ports:

2 Host Ports Not Isolated

Outer Dimensions:

130 x 120 x 28mm

Operating Temperature Range:

-20° to +50°C
