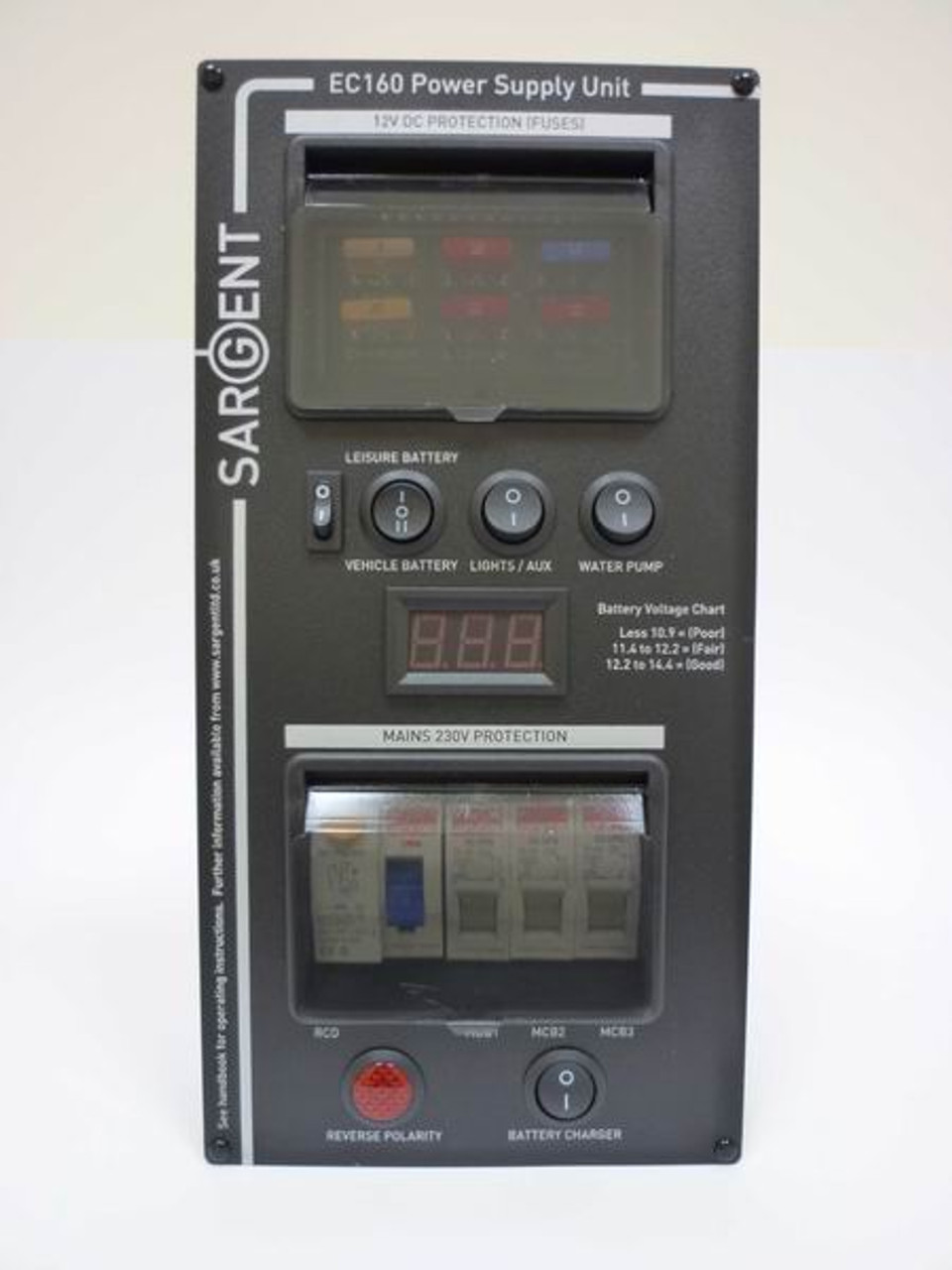

Sargent EC160V PSU Vertical Power Supply Unit

Specially designed for use in caravan, motorhome, camper van and horsebox installations, the Sargent EC160V PSU Vertical Power Supply Unit is a combined 240vAC and 12v DC distribution unit which is both easy to install and easy to use.

Sargent PMS3 EC160 Power Supply Unit features

230v AC:

• 16A input via wired 2m lead
• RCD protected with reverse polarity indication
• Built in 150w 13.8v fixed voltage battery charger with on/off switch
• 3 x 10A MCB outputs via quick fit connector blocks

12v DC

• 2 x 15A battery inputs via screw terminal block
• 5 x outputs via screw terminal black
• Pump output via pump switch & 5A fuse
• Lights output via lights / Aux switch & Aux 10A fuse
• Permanent output via 5A fuse
• Fridge output VA 15A fuse
• Built in split charge relay (configurable)
• Built in EMC isolation relay (configurable)
• Digital voltmeter with on/off switch

User Guide:

Technical Specifications:

Dimensions:

(H) 300 x (W) 150 x (D) 205
