Dometic SK5 Cassette Toilet Service Hatch Caravan Access Door

A caravan and motorhome access door, the SK5 service hatch for Dometic cassette toilets is suitable for use the following toilets:

• CTS4110
• CTW4110
• CTS3110
• CTW3110

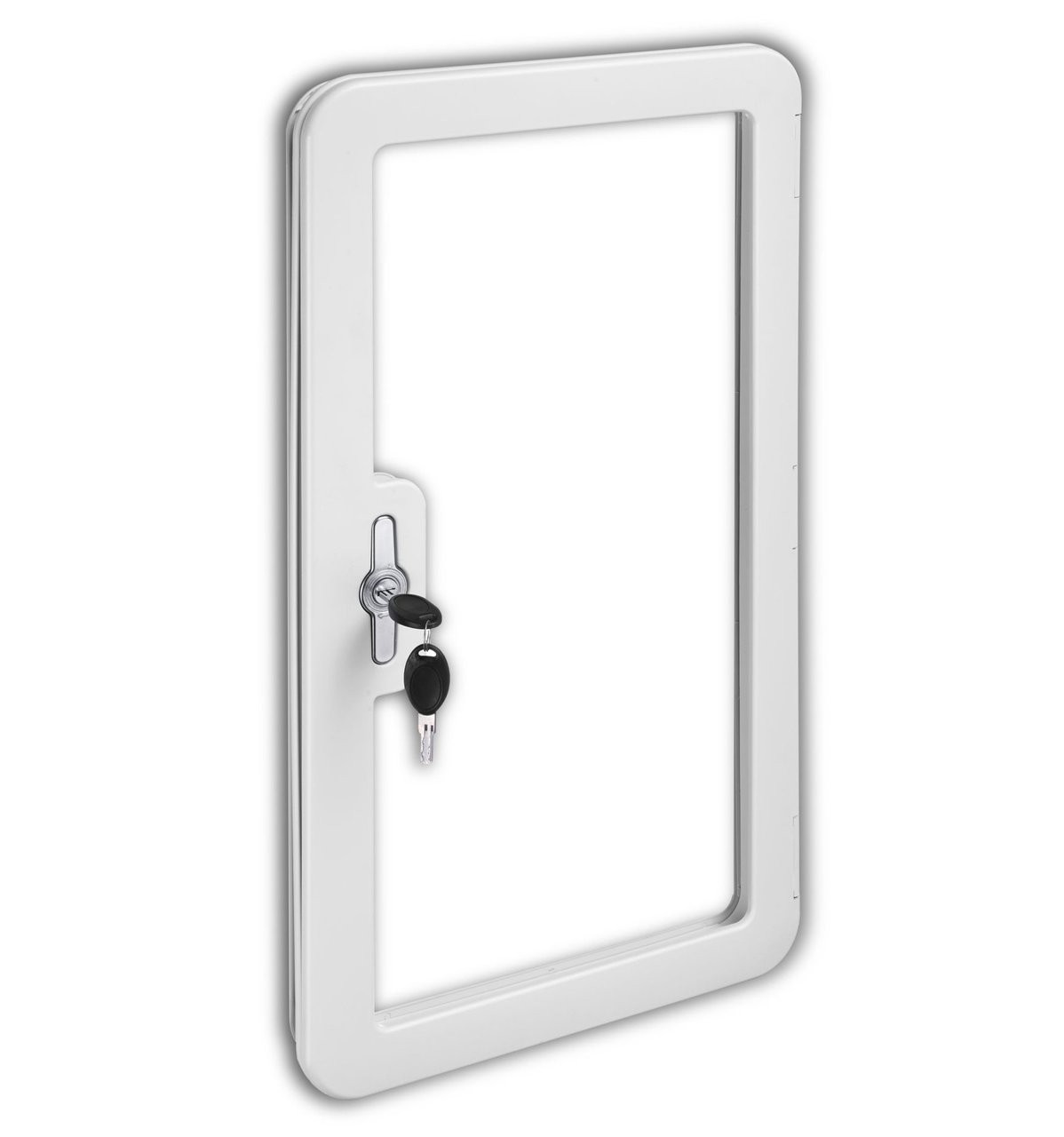

Please note; The infill on this door is created by using the cut out part of your vehicle. The SK5 door consists of the framework to fit this into (please see images 2 and 3)

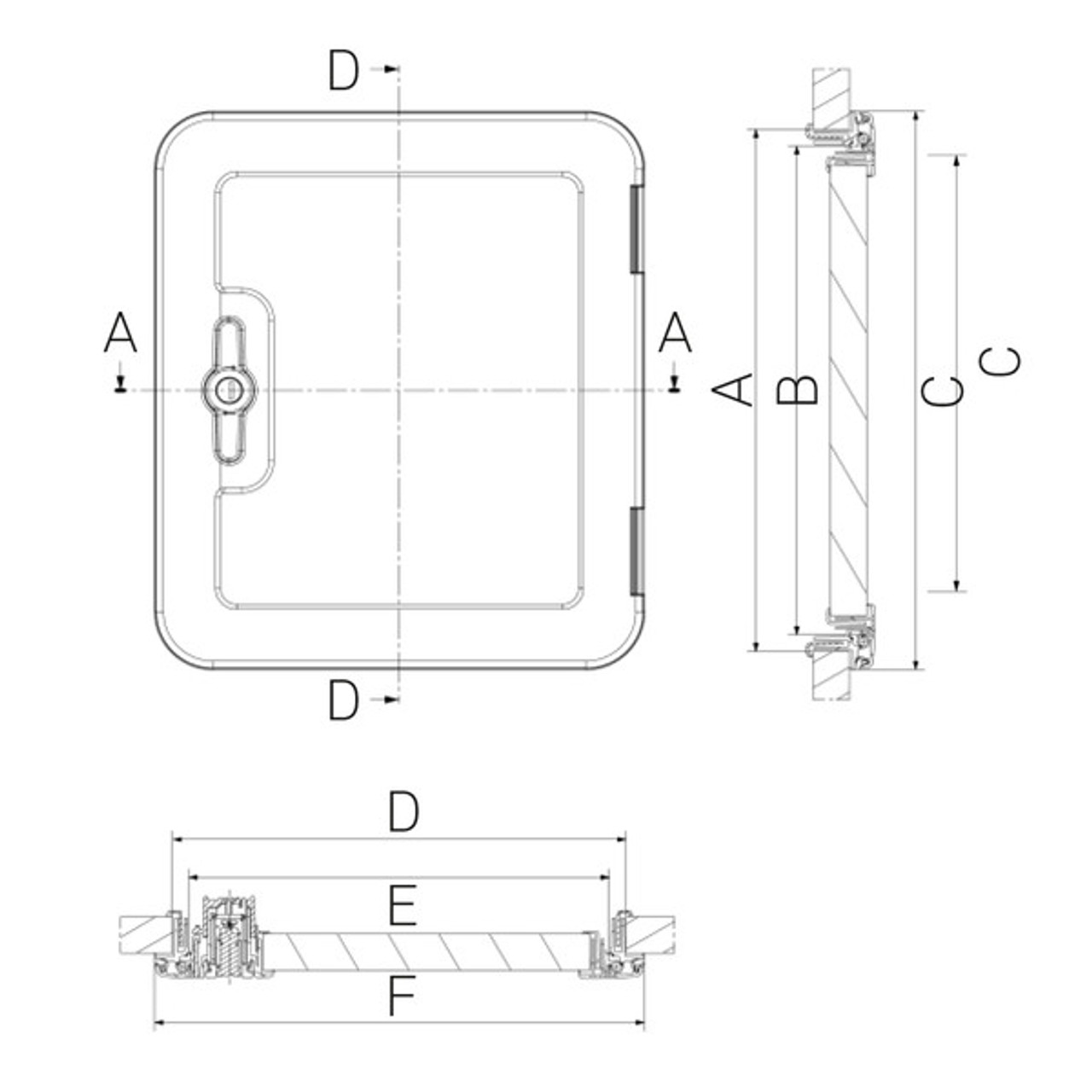

Technical Specifications:

Size (W x H):

360 x 310 mm

Space size in width (a):

360 mm

Clearance width (b):

337 mm

Overall width (c):

385 mm

Space size in height (d):

310 mm

Clearance (e):

288 mm

Overall height (f):

335 mm

Wall thickness:

23 – 36 mm
